Solo Motorsports Toyota Double-Shear Kit/Upper Control Arm Bolt Reinforcement

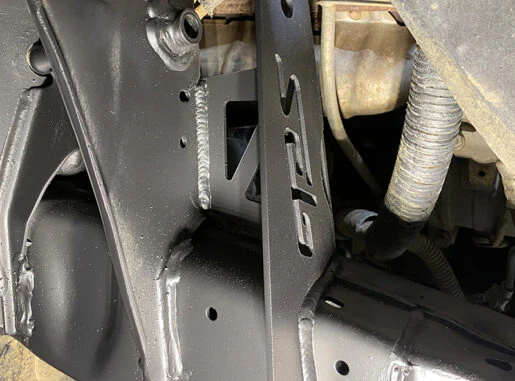

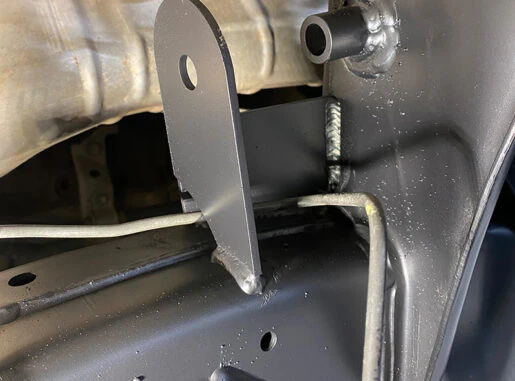

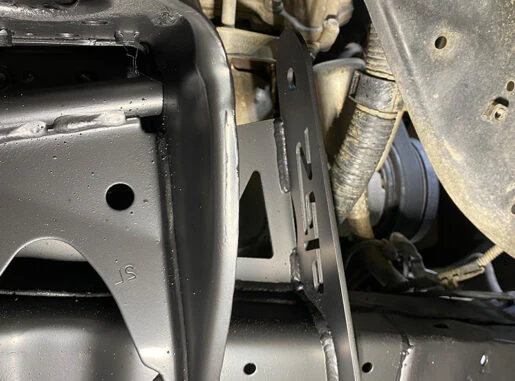

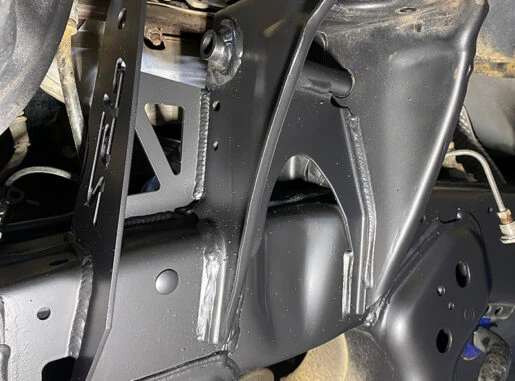

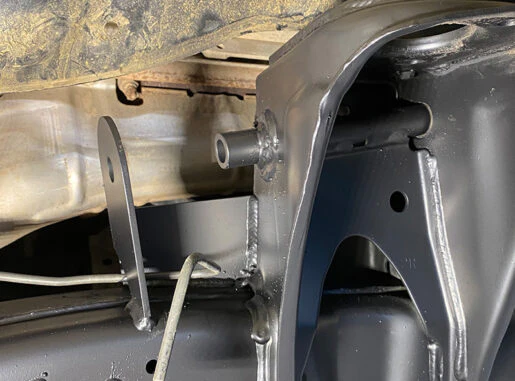

A must for long-travel kits! Solo Motorsports offers this Toyota Double-Shear Kit/Upper Control Arm Bolt Reinforcement for the Toyota Tacoma, 4Runner, Sequoia, Tundra and FJ Cruiser. This Weld-It-Yourself double-shear kit aligns the long factory upper control arm bolt and strengthens the factory coil buckets.

This Double-Shear Kit will work with any aftermarket upper control arm setup. The reason why these W-I-Y double-shear plates come in separate pieces is the fact that some coil buckets maybe be slightly out of original factory alignment from either an accident or good old-fashioned off road fun. Solo Motorsports designed the double-shear plates to be slightly longer, and are made to be trim to fit for your application.

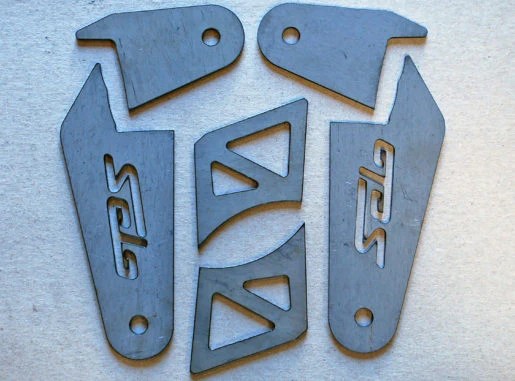

The plates are CNC cut from 10-gauge cold-rolled U.S. steel for high strength and come with the “Solo” logo cut out on front plates.

Applications

• 1996-2023 Tacoma (6 Lug)
• 2000-2006 Tundra

• 2001-2007 Sequoia
• 1996-2024 4Runner 4WD
• 2007-2014 FJ Cruiser 4WD

Specs

• Weld-It-Yourself
• CNC laser cut from 10-gauge cold-rolled steel
• Works with any aftermarket control arms

Toyota Double-Shear Kit Includes

• UCA Double-Shear plates
