Solo Motorsports Long Travel Kit Tacoma 96-04/4Runner 96-02
Solo Motorsports Long Travel Kit Tacoma 96-04/4Runner 96-02
The Solo Motorsports Long Travel Kit for the 96-04 Toyota Tacoma and 96-02 4Runner will achieve 14ā³ of fully-functional 2WD or 12.5ā³ of travel for 4WD kits. Combine this 14ā³ long-travel kit with theĀ Full Fabricated Spindles,Ā 1ā³ Lower Uniball Conversion withĀ Heim SteeringĀ upgrades and your Tacoma or 4Runnerās strength and durability is greatly improved.
NEW Lower Control Arms (Version 2) push the lower ball joint forward 1ā³ to help clear for 35-37ā³ tires. The new arms are designed with high ground clearance. Increasing the distanced from your suspension and ground.
Solo Motorsports took it a step above competitors and made Ā¾ā heims standard on the UCAs included in this kit! This will help to align your truck, even if you have a worn and fatigued frame.
Solo Motorsports ToyotaĀ W-I-Y UCA Double ShearsĀ are not included but highly recommended in order to keep the cross shaft bolt from bending during hard driving.
Application
- 1996 to 2002 Toyota 4Runner 2WD/4WD
- 1996 to 2004 Toyota TacomaĀ 2WD/4WD
Specs
- 14ā of wheel travel 2WD
- 12.5ā³ of wheel travel 4WD
- 3 1/2ā³ per side increased track width
- Fits 35ā³ tire size
- Fiberglass required: Yes
- Black Semi-Gloss Powder coated finish
- Extended Front Brake Lines
- 2WD/4WD compatible
- Upper Control Arms with 3/4ā³ heim pivots and 1ā³ uniballs
- Built in strike pads on Lower Control Arms for bump stops
- Lower ball joint is pushed forward 1ā³ for better firewall clearance
- Dual lower shock mount on the LCA to run a secondary shock
- Extended Front Brake Lines
- MIG welded construction
- 4130 Chromoly 1ā³ uniball cups
- Made in the U.S.A

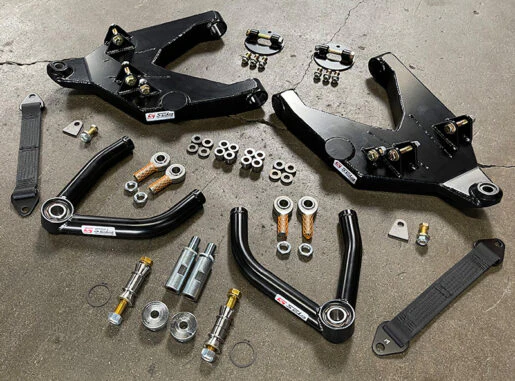

Long Travel Kit Includes
- MIG Welded Tubular Upper Control Arms
- MIG Welded BOXED Lower Control Arms
- FK 3/4ā³ heim pivots
- FK 1ā uniballs
- Polyurethane bushing pivots with center sleeves
- Machined Zinc Plated Steering Connectors
- DOT StainlessĀ Brake Lines
- Limit Straps with weld-on frame tabs
- Upper Shock Coil Bucket Adapters for 8ā³ stroke coil over shocks*
- Grade 8 Hardware
- 17-4 Stainless Steel Misalignment Spacers
- Extended 4WD complete axle package (ONLY FOR 4WD KITS)
Original: $4,284.20
-65%$4,284.20
$1,499.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Solo Motorsports Long Travel Kit Tacoma 96-04/4Runner 96-02
The Solo Motorsports Long Travel Kit for the 96-04 Toyota Tacoma and 96-02 4Runner will achieve 14ā³ of fully-functional 2WD or 12.5ā³ of travel for 4WD kits. Combine this 14ā³ long-travel kit with theĀ Full Fabricated Spindles,Ā 1ā³ Lower Uniball Conversion withĀ Heim SteeringĀ upgrades and your Tacoma or 4Runnerās strength and durability is greatly improved.
NEW Lower Control Arms (Version 2) push the lower ball joint forward 1ā³ to help clear for 35-37ā³ tires. The new arms are designed with high ground clearance. Increasing the distanced from your suspension and ground.
Solo Motorsports took it a step above competitors and made Ā¾ā heims standard on the UCAs included in this kit! This will help to align your truck, even if you have a worn and fatigued frame.
Solo Motorsports ToyotaĀ W-I-Y UCA Double ShearsĀ are not included but highly recommended in order to keep the cross shaft bolt from bending during hard driving.
Application
- 1996 to 2002 Toyota 4Runner 2WD/4WD
- 1996 to 2004 Toyota TacomaĀ 2WD/4WD
Specs
- 14ā of wheel travel 2WD
- 12.5ā³ of wheel travel 4WD
- 3 1/2ā³ per side increased track width
- Fits 35ā³ tire size
- Fiberglass required: Yes
- Black Semi-Gloss Powder coated finish
- Extended Front Brake Lines
- 2WD/4WD compatible
- Upper Control Arms with 3/4ā³ heim pivots and 1ā³ uniballs
- Built in strike pads on Lower Control Arms for bump stops
- Lower ball joint is pushed forward 1ā³ for better firewall clearance
- Dual lower shock mount on the LCA to run a secondary shock
- Extended Front Brake Lines
- MIG welded construction
- 4130 Chromoly 1ā³ uniball cups
- Made in the U.S.A
Long Travel Kit Includes
- MIG Welded Tubular Upper Control Arms
- MIG Welded BOXED Lower Control Arms
- FK 3/4ā³ heim pivots
- FK 1ā uniballs
- Polyurethane bushing pivots with center sleeves
- Machined Zinc Plated Steering Connectors
- DOT StainlessĀ Brake Lines
- Limit Straps with weld-on frame tabs
- Upper Shock Coil Bucket Adapters for 8ā³ stroke coil over shocks*
- Grade 8 Hardware
- 17-4 Stainless Steel Misalignment Spacers
- Extended 4WD complete axle package (ONLY FOR 4WD KITS)
