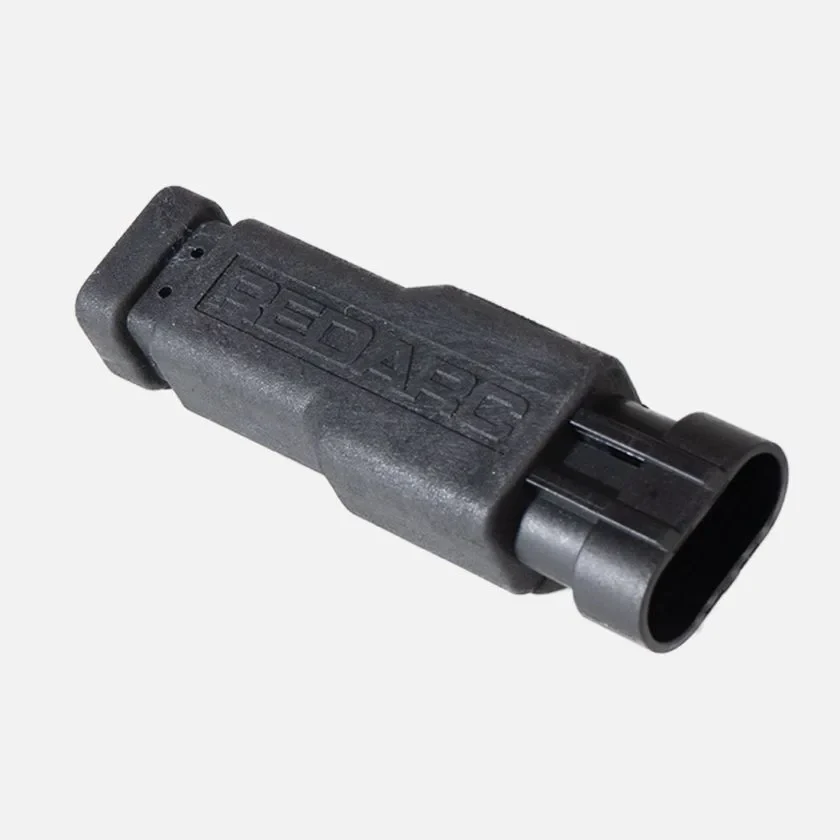

Redarc Encapsulated Protection Device

The REDARC Encapsulated Protection Device (EPDK-001) is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections.

REDARC has released an Encapsulated Protection Device (EPDK-001). It is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections.

The EPDK-001 has been designed to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where ‘back-feed’ of 12V (during Tow-Pro Manual Override) may interfere with the vehicle systems. When installed correctly, the EPDK-001 ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used.

Download the EPDK fitting instructions here.

It supports 12V and 24V applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 85°C.
