DRT Fabrication 2003-2024 4Runner Cab Mount Relocation

DRT Fabrication 2003-2024 4Runner Cab Mount Relocation

*Please note: Ships with red or black depending on what the vendor has available, we are not able to choose the specific colour.

The Strongest CMR Kit on the Market

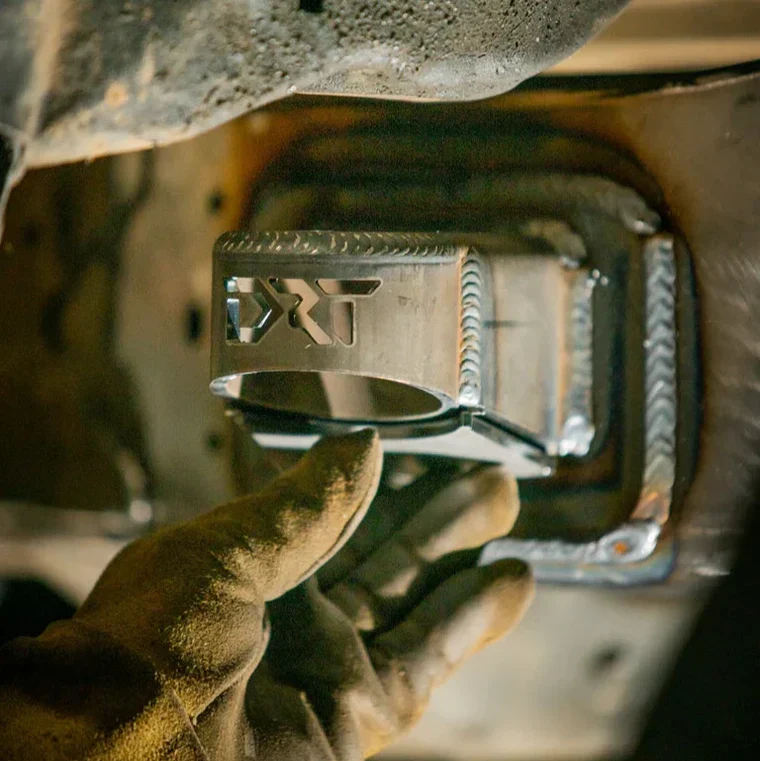

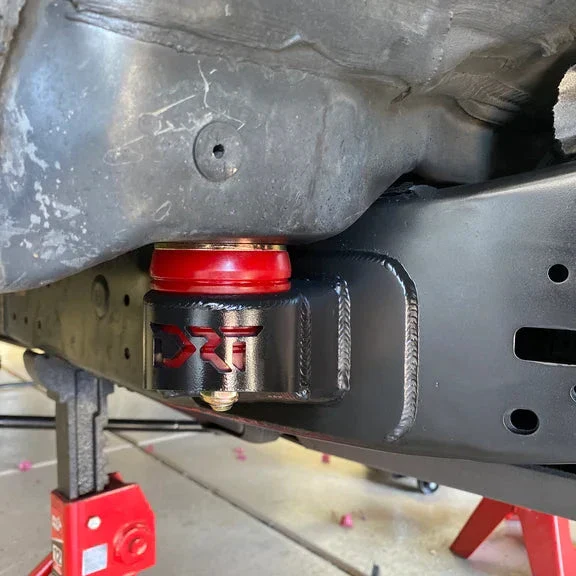

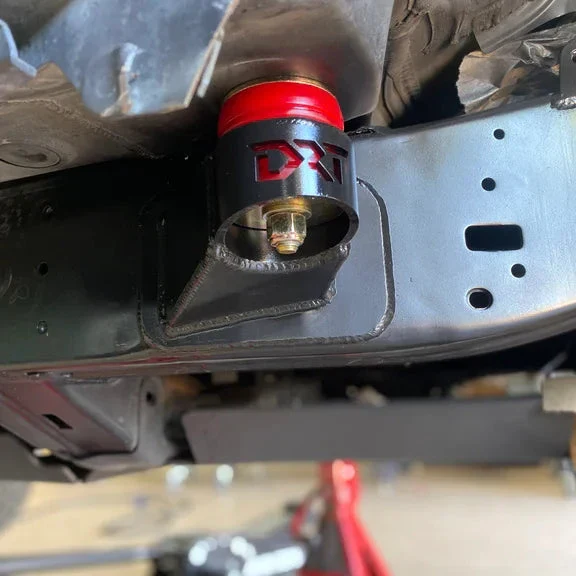

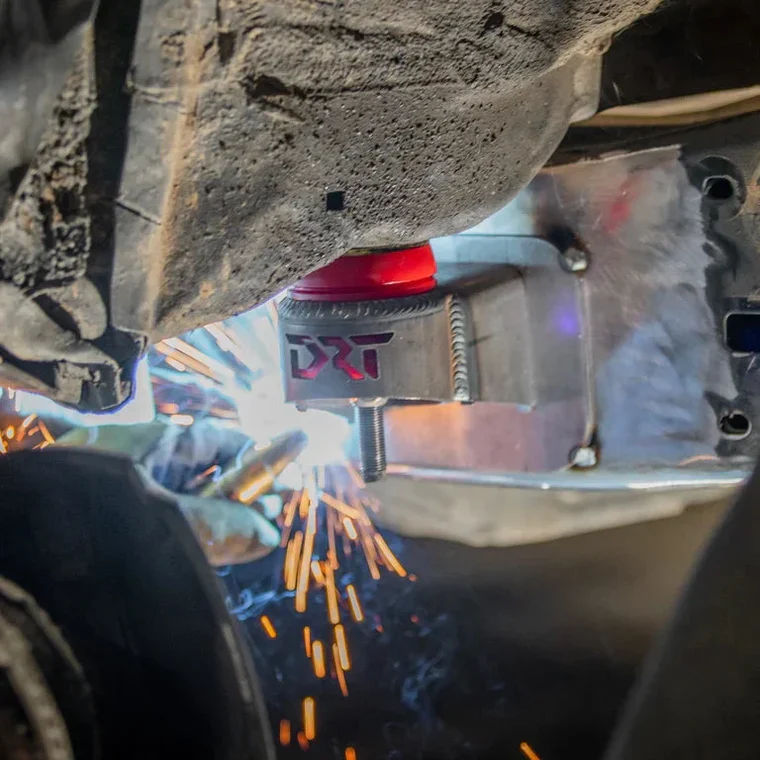

The DRT Fabrication Cab Mount Relocation (CMR) Kit is the proven solution for running 35” tires on your Toyota 4Runner, FJ Cruiser, or Lexus GX. Factory cab mounts don’t leave enough clearance, and even with a traditional “cab mount chop,” rubbing issues often remain. This relocation kit moves the cab mount completely behind the firewall, providing the clearance you need for larger tires without compromise.

Built to Withstand Anything

• Unlike other kits, the DRT CMR system is designed for maximum strength and durability:
•  3/16” frame overlay plate disperses load and prevents stress cracks
•  Fully boxed cab mount design (the only one on the market)
• Constructed from laser-cut 3/16” & ¼” plate steel
•  .188 DOM tube housing with Energy Suspension cab mount bushings
• The strongest cab mount relocation kit available today

Vehicle Fitment

• 2003–2024 Toyota 4Runner
• 2007–2014 Toyota FJ Cruiser
• 2003–2009 Lexus GX470
