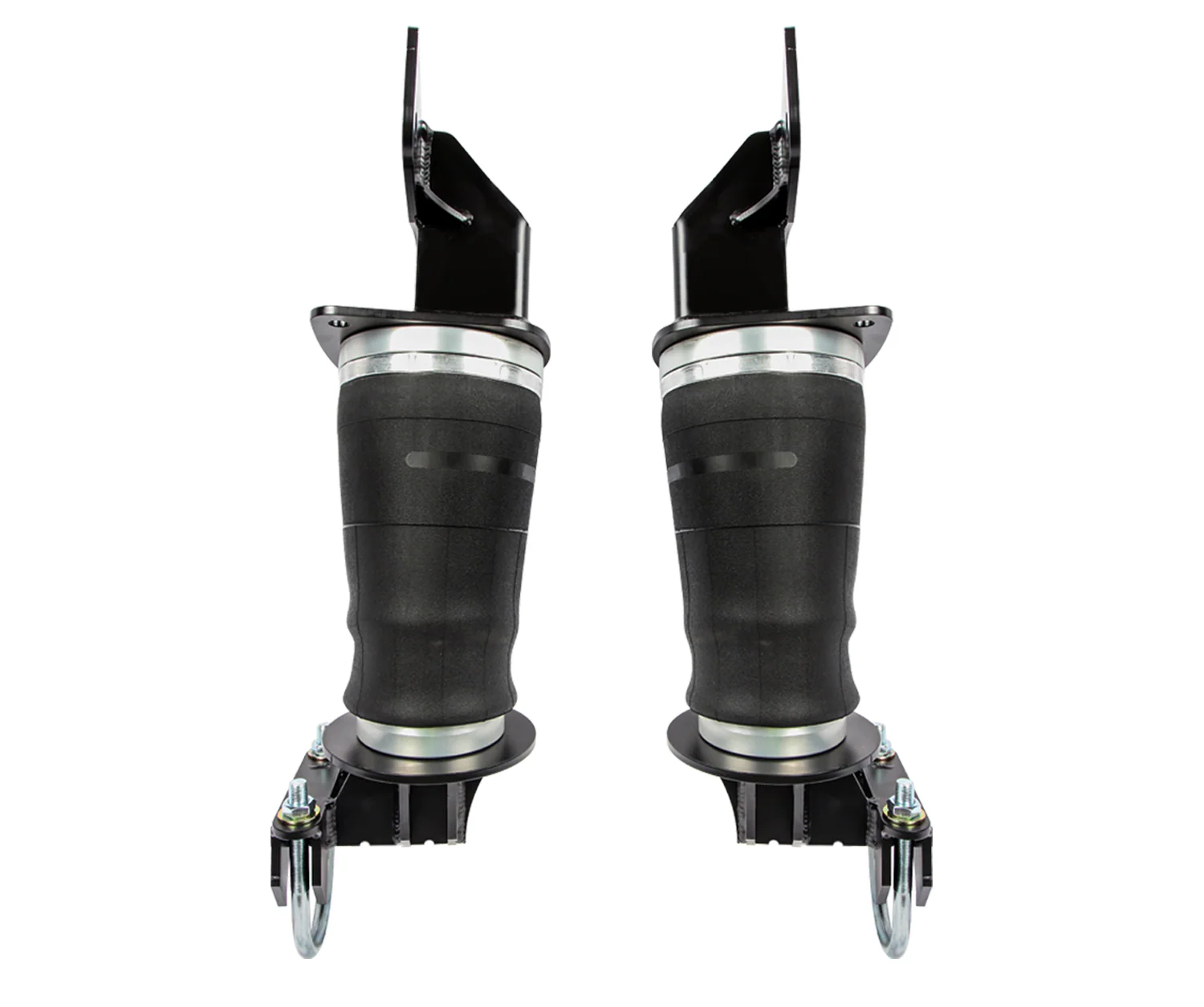

Carli Suspension 2017-2022 Ford Super Duty Long Travel Airbags

Carli Suspension 2017-2022 Ford Super Duty Long Travel Airbags

Double Bellow Airbags are restrictive to ride quality and travel of the rear suspension; Enter Carli Long Travel Airbags. Carli combines tapered billet pistons and rolling sleeve design to maximize the travel and ride quality by minimizing the exponential spring rate increase associated with aftermarket airbags. The airbags are rated to 2,000lbs. each at 100psi with a normal operating range of 5-75psi while supporting up to 12 inches of suspension travel.

The extended and collapsed dimension combined with ride height piston-depth makes these airbags compatible ONLY with Carli 4.5″ Lifts, unfortunately. Everything is included to set these up for manual fill but we provide industry standard 1/4″ airline to plumb these into your existing air system if desired.

NOTE: Ford Long travel airbags will ONLY work with rear lifts that level to a 5.5″ Front lift.  Carli recommends 2″ of lift in the rear over trucks with 3″ factory blocks.

• Supports up to 12 inches of travel

• Compatible with Carli 4.5"-5.5″ Suspension Systems ONLY

• Restore Factory Payload to Full Progressive Springs

• Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi

• Use Manually (included) or with onboard air System (1/4″ airline compatible)

• Fitment: 2017-2022 F250/F350 4×4

Installation Instructions
