Archive Garage Lower Axle Shock Tab Mount For Rod End Shocks
Archive Garage Lower Axle Shock Tab Mount For Rod End Shocks

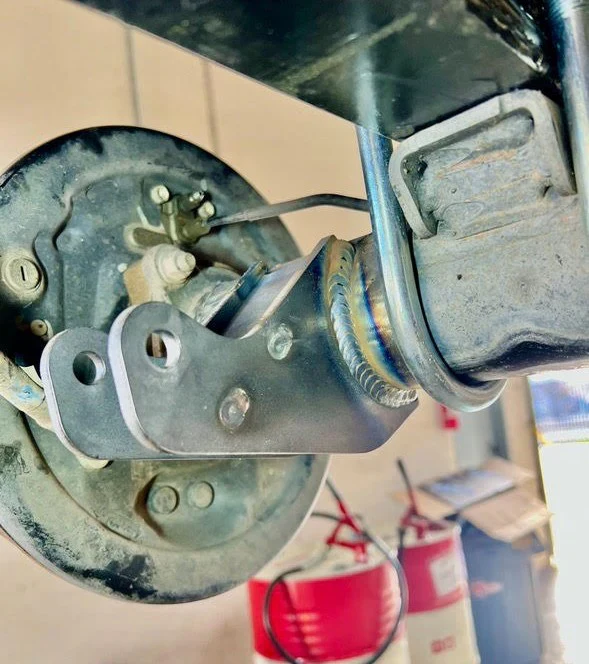

A pair of quality gusseted axle shock tab mounts that put the shock eye center 4" off axle OD. As such it can be mounted clocked up, horizontal or clocked down a tad over 45 degrees to help stuff those long travel Fox or Kings under the body or bed.Ā
This specific tab comes in the Archive GarageĀ 2G/3G TacomaĀ relocation kits
- Constructed from 1/4" HSLA (30% stronger) for extra toughness
- They come welded as shown, jig built, with tab gap just over 1.5" for easy fit
- Hole size is for 1/2" bolt
- Axle end is 3.25" diameter, but designed to fit any axle with 3.125" to 3.25" OD such as: 2G/3G Tacomas,Ā 3G 4Runner, Ford Explorer 31 spline 8.8"Ā
$37.80
Original: $108.01
-65%Archive Garage Lower Axle Shock Tab Mount For Rod End Shocksā
$108.01
$37.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Archive Garage Lower Axle Shock Tab Mount For Rod End Shocks
A pair of quality gusseted axle shock tab mounts that put the shock eye center 4" off axle OD. As such it can be mounted clocked up, horizontal or clocked down a tad over 45 degrees to help stuff those long travel Fox or Kings under the body or bed.Ā
This specific tab comes in the Archive GarageĀ 2G/3G TacomaĀ relocation kits
- Constructed from 1/4" HSLA (30% stronger) for extra toughness
- They come welded as shown, jig built, with tab gap just over 1.5" for easy fit
- Hole size is for 1/2" bolt
- Axle end is 3.25" diameter, but designed to fit any axle with 3.125" to 3.25" OD such as: 2G/3G Tacomas,Ā 3G 4Runner, Ford Explorer 31 spline 8.8"Ā
